There Are Two Ways to Replace a Window and They Are Not Interchangeable

Stand across the street from a house and squint until the detail drops away. What is left is a pattern of dark rectangles on a lighter field, and that pattern is most of what you are responding to when you say the house looks right. The windows do more work than the roofline or the paint, because there are eight or ten of them, they are the only interruptions in an otherwise solid wall, and the eye reads openings before it reads surfaces.

Anyone who draws or photographs buildings learns that early. A facade is a composition whether or not somebody set out to design one, and the windows are the dark notes that give it rhythm. Homeowners usually notice the composition only after it has been broken, which tends to happen on the afternoon the new units go in. The order was written by operating style, glass package and price. Nothing on it described the wall it was going into.

Most of what goes wrong here costs nothing to avoid, which is the frustrating part. A tall narrow sash divided by a rail across its middle reads as a double hung from the sidewalk whether it operates that way or not, and a whole category of houses, the Craftsman bungalows and the older Victorians behind them, depends on exactly that proportion. Specifying it instead of accepting the default wide rectangle is a line on an order form, not a premium.

The window each style was drawn with

Residential architecture in this part of California arrived in distinct waves, and each wave brought an operating style with it. The window was not chosen for the house. The house was drawn around the window that was being manufactured at the time, which is why style and operation line up so tidily when you walk an older street.

The tall sash: Craftsman and Victorian

On the bungalows of the Wood Streets and the older houses near downtown Riverside, the unit is vertical and often much taller than it is wide. Sash were counterweighted in pockets inside the jambs, so height was cheap and width was not. The upper sash frequently carries a divided pattern while the lower one is a single clear pane, which puts the visual weight high and leaves the view unobstructed where people actually look. Group three of them under a porch gable and the rhythm is the whole front of the house.

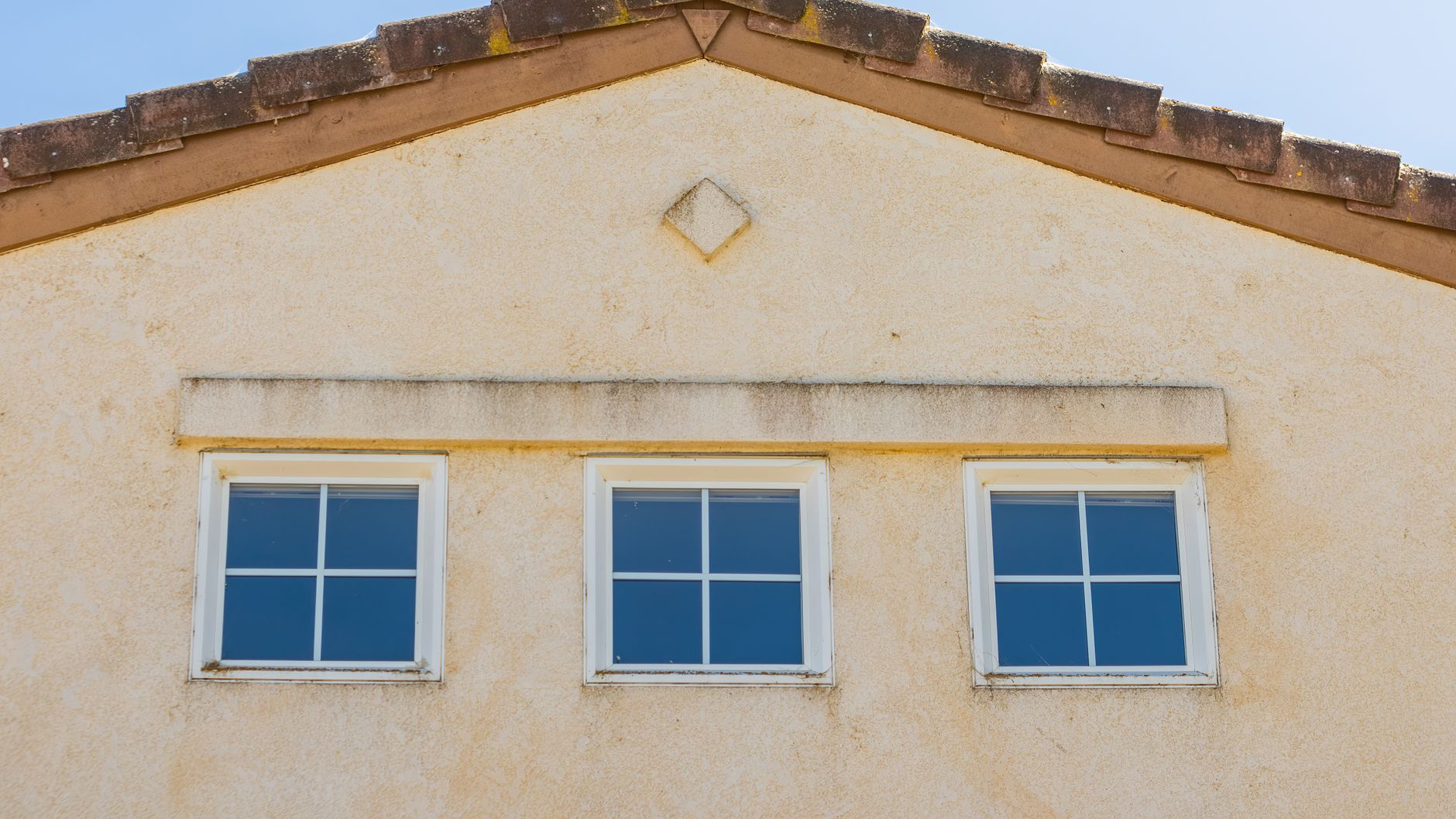

Casements and deep reveals: Spanish Revival

The stucco houses of the twenties and thirties, the ones scattered through Hawarden Hills and the streets that grew up around the Mission Inn era downtown, work the opposite way. Walls are thick, or made to look thick, and the opening is cut into them with a deep reveal that throws a shadow. Sash swing out on side hinges. Some openings are arched, some are paired under a small tile hood, and some are not glazed at all but screened or barred. The shadow in the reveal is doing as much for the elevation as the glass is.

The horizontal era: postwar tracts

East and south of Riverside's older neighborhoods the houses get wider and lower and the windows follow. Mill finish aluminum, a wide rectangle, half of it fixed and half sliding sideways. It is easy to be snobbish about these, and it is also a mistake, because a horizontal opening on a long low wall is correct. A tall divided sash on a 1968 ranch front looks borrowed. The honest upgrade on those streets is a better window in the same proportion, with a slimmer sightline and a frame color that is not chalky.

Picture glass and clerestories: ranch and mid century

The better mid century houses use two moves the tracts did not. One is the picture window, a single large fixed pane with no divisions at all, usually flanked by narrow operable units that do the ventilating. The other is the clerestory, a band of short windows high on the wall that lights a room without giving up privacy or wall space. Both are deliberately quiet. Put a grid pattern on either one and the house stops being mid century and starts being confused.

Proportion is the rule a replacement breaks first

Operating style is the part people get right by accident, since most replacements go back as whatever came out. Proportion is where projects go wrong, and it goes wrong in four specific places.

A vertical opening that becomes a horizontal one

The commonest change is a pair of tall sash replaced by one wide slider, usually because the room wanted more ventilation or because the slider was cheaper per square foot. The opening is the same hole in the wall, so no permit question arises and nobody draws it. From the street the facade loses its vertical beat and the wall above the window suddenly looks heavy. If ventilation is the real goal, two narrow casements in the original proportion move more air than a slider of the same width, since the whole sash opens rather than half of it.

Sash thickness and the sightline

A vinyl insert sets a new frame inside the old one, so every unit loses an inch or two of glass on each side, and the frame that remains is thicker than the wood it replaced. On one window nobody notices. On a front elevation with six, the glass area shrinks, the white borders widen, and the house reads as though it is squinting. Ask for the glass dimension rather than the unit dimension, and compare the frame depth between products.

Where the horizontal line falls

On a two sash window there is a line across the middle where the sash meet. Original units put it near the center or slightly above it, and that line carries across the whole elevation if every window matches. Modern units place it wherever the hardware wants it. Mixed across one wall, the mismatch is visible even to people who could not say what they are looking at.

The sill and the trim profile

The last one is not the window at all. A traditional opening has a projecting sill with a drip, and casing around it with some depth to it, so the window sits in a frame that casts its own shadow. Strip that off, wrap the opening in flat aluminum coil stock and caulk the edge, and the window becomes a sticker on the wall. Keeping or rebuilding the trim profile does more for the look of an older house than any choice made about the unit inside it.

Grids, and the three ways they are made

Divided panes exist because glass used to come in small pieces. The divisions were structural, each small pane bedded into a slender wooden bar, and the bar read as a thin dark line with real shadow on either side of it. Everything sold now imitates that, and the imitations differ enough to matter on a street where the originals are still visible next door.

Grids between the glass sit inside the sealed unit, which makes the pane easy to clean and the window cheap to build. They also sit in the middle of an inch of air, so they cast no shadow and move with your head as you walk past. Simulated divided lites bond a bar to the outside and the inside of the glass with a spacer between, so the line falls where the eye expects and reads as a joint rather than a stripe.

The pattern matters as much as the method. Count the panes on the original before anything is ordered, because a six over one bungalow sash and a colonial pattern with twelve small squares belong to different houses a century apart. And dropping the grids entirely is a legitimate choice on a rear elevation nobody sees, on a tract house that never had them, or on a mid century wall where clear glass was the point. It is the wrong choice on a street of divided sash, where one blank pane is the window your eye lands on.

Frame color against stucco and against siding

White is the default and it is not neutral. Against warm cream stucco, bright white frames read as cold and the openings jump forward off the wall, which is the opposite of the recessed shadow a Spanish Revival elevation depends on. Bronze, almond or a dark exterior with a light interior usually sits better, and a dark frame makes the glass area look larger because the border disappears into its own shadow. On painted wood siding the calculation is different, since the trim is already a light band and white frames extend it. Hold samples against the actual wall in afternoon light, not against a showroom panel.

If the house is designated, the review comes first

A house inside a historic district, or individually listed on a local register, is in a different process. Exterior changes visible from the street are typically reviewed before a permit issues, and windows are the single most common reason an application comes back. Review bodies tend to care about the same things described above: proportion, the position of the meeting rail, the pattern of the divisions, the depth of the trim and whether the original sash can be repaired instead of replaced. Repair is often cheaper than people assume, since old growth sash in a dry climate can be reglazed and reweighted while the glass itself stays. Find out your status before ordering, because a unit built to a size cannot be unbuilt, and a window installed without approval can have to come back out.

Writing the elevation into the order

Photograph the front of the house square on from across the street, print it, and draw the new windows onto the print. It takes ten minutes and it settles arguments that words cannot. Then put the result on the order: the operating style per opening, the glass size rather than the unit size, the grid pattern and how it is made, the meeting rail height, the frame color by name and number, and who is responsible for the trim when the old casing comes off.

None of that is about performance, and performance still matters more for comfort. But the glass package is settled once and forgotten, while the composition of the front of a house is looked at by everyone who walks past it for the next forty years. A window that fits the house it is in disappears, which is the whole trick. The ones you notice are the ones somebody ordered without stepping back across the street first.

Two quotes arrive for the same house. Same manufacturer, same product line, same glass package, same number of openings. One is roughly half the other. Nothing in either document explains why, and the homeowner is left assuming somebody is either padding the job or cutting corners.

Usually neither is true. The two quotes are describing two different kinds of work. One of them is setting new windows inside the frames that are already in the wall. The other is taking the openings back to bare framing, which means cutting the stucco, rebuilding the water barrier and patching the wall afterward. The window is the smaller half of what you are buying either way.

The trade calls the first one a retrofit, an insert, a block frame or a flush fin installation, depending on who is talking and which part they are emphasising. The second is a full frame or new construction installation. Ask around about replacement windows riverside homeowners have had fitted on 1970s and 1980s stucco tract houses and you will hear both methods described, often in the same breath and rarely with the distinction made clear. It is worth understanding, because the right answer is decided by the condition of what is already in the wall, not by preference and not by budget.

The old aluminum frame is the whole question

Most of the original windows on stucco houses of that era are single pane aluminum sliders. The frame is a thin extrusion, usually mill finish or anodized bronze, set into the rough opening with a nailing flange that sits under the building paper and the stucco. That flange is the important part. It is buried. There is no way to remove it without removing stucco, which is the fork in the road.

What a retrofit removes

A retrofit takes out the glass, the moving panels, the screen and whatever interior parts of the old frame can be unscrewed or cut loose. The perimeter of the old frame, the part under the stucco, stays exactly where it is. The new window is set inside that remaining frame and fastened through it, and a flange on the new unit covers the junction on the outside.

Nothing on the exterior wall is cut. No paper, no lath, no stucco, no paint beyond the window surround. Interior casing and drywall usually stay untouched as well. A crew can do several openings in a day, and a house can be finished in one.

What full frame removes

A full frame installation goes after that buried flange. Stucco is cut back in a band around the opening, wide enough to expose the flange and a little of the sheathing beyond it, the lath is cut, and the whole old frame comes out. The new window is then installed the way a window goes into a house under construction: flashed at the sill first, then the jambs, then the head, with the building paper lapped over the flanges in the correct order so water running down the wall passes over each layer rather than behind it. Then lath, scratch coat, brown coat, finish coat to match the existing texture, and paint.

That sequence is the reason for the price difference. It is a stucco job with a window in the middle of it, and the patch is skilled work. A texture match on a thirty year old wall is never invisible, which is why full frame work on one elevation often ends with that elevation being repainted.

The glass you lose, and how to measure it before you sign

The honest cost of a retrofit is glass area. The new frame sits inside the old one, so the visible opening shrinks by the depth of the old frame on all four sides, plus the new frame's own width.

How much that matters depends on the window. On a wide living room slider the loss reads as a slightly heavier border and most people never notice. On a small bathroom or hallway window it can be a visible change, and on a bedroom window it can matter in a way that has nothing to do with looks. An escape opening has minimum dimensions, and a retrofit shrinks a window that may already be close to the limit. If a bedroom window is small to begin with, that opening is a candidate for full frame work for reasons of code rather than taste. Confirm the requirement for your own address with the local building department, because what applies depends on the age of the house and on what is being permitted.

So measure the existing glass, width and height, on the openings you care about, then ask the estimator for the new unit's visible glass dimension on a retrofit install there. Any competent estimator can produce that number. If you are told it will be about the same, the answer is wrong by definition, and it says something about the rest of the quote.

Reading the opening: what actually decides it

Three pieces of evidence settle the method, and all three are visible before anyone orders anything.

Staining or soft material at the sill

Pull the slider panel out, or look along the bottom track with a flashlight. Dark staining below the sill, bubbled paint on the interior wall under the window, a chalky bloom on the stucco, or a sill plate that feels soft to a probe all point the same way. Water has been getting past, and it has been getting past at the flange that a retrofit leaves in the wall. Covering a wet detail with a new window hides the symptom and keeps the cause. That is the clearest case for going to full frame on that opening, because the flashing is what is failing and the flashing is under the stucco.

Stucco cracks running off the corners

Diagonal cracks radiating from the upper and lower corners of an opening are the wall telling you where it has been moving. They are common and often cosmetic, but they also mean the stucco around that opening is already compromised, which changes the calculation. A retrofit leaves those cracks untouched and relies on them not channelling water in behind the new flange. A full frame cut removes that band of stucco anyway.

Whether the old frame is square and sound

Set a long level against the sill, then against both jambs, and look for daylight along the straightedge. Check the diagonals with a tape if you can reach them. A frame that has racked, bowed along a long span, or corroded at the sill is not a sound base to fasten a new window to. The new unit then gets shimmed inside a crooked frame, and the result is a window that locks stiffly and seals unevenly on one side. A straight, dry, solid old frame is the condition a retrofit was designed for.

Flush fin over stucco, and the joint that matters most

The flush fin is the version used most on stucco here. The new window carries an integral fin on the exterior, a flat lip roughly an inch wide that lies against the stucco and covers the cut edge of the old frame. It is the fastest exterior detail there is, and it concentrates everything that keeps water out into one line of sealant between the back of that fin and the wall.

Which is why a few things are worth watching. The stucco the fin lands on should be sound and not crumbling, because sealant on loose material fails with the material. The fin needs a continuous bead behind it rather than a cosmetic smear run along the outside afterward. The sealant should be an exterior grade product rated for movement and for ultraviolet exposure, not interior painter's caulk. And the bead at the sill is handled differently from the head and jambs: a flush fin sill is commonly left with deliberate gaps or weeps so that anything that does get in has a way back out. Sealing all four sides solid traps water in the one place you cannot see it.

Why Inland Empire conditions land on this decision

Summer here runs well over a hundred degrees for weeks, the sun comes in hard off the west in the late afternoon, and the air is dry. Three consequences follow.

A dark exterior fin or frame in full west sun gets much hotter than a white one, and the whole assembly expands and contracts across a wide daily range. That movement is carried by the sealant line behind the fin, which is the reason product choice there is not a detail. Light exterior colours run cooler and ask less of that joint, and if the quote offers a dark exterior on the west elevation it is fair to ask what the sealant is.

Low emissivity coatings matter more for comfort than the frame method does, but the two interact. A retrofit changes no shading at all, so the glass has to do the whole job, and a package chosen for a shaded north opening should not be the same one going on an unshaded west wall.

Dust and Santa Ana wind drive grit into tracks and sealant joints. A retrofit inherits the old frame's drainage path, which has been collecting that grit for decades. Clearing the old weeps before the new window goes in takes minutes and is skipped constantly.

How to tell which method a quote is selling

The words are the tell, so read for them rather than for the price.

Retrofit language sounds like: flush fin, block frame, insert, retrofit, no stucco disturbed, interior trim untouched. Full frame language sounds like: nail fin, nailing flange, stucco cut back, lath and paper, flashing and pan, stucco patch and texture match, paint to the nearest break.

Then look for what is missing. A quote that names a nail fin window but says nothing about stucco patching has left the most expensive unknown out of the number. A quote that says retrofit on a bedroom window without giving the finished glass dimension has not answered the egress question. A quote that is silent on which method applies to which opening is not comparable with anything, and a line saying only replace windows is not a scope of work.

It is also entirely reasonable for one house to get both. The dry, square openings on the shaded side take retrofits, and the two openings with stained sills on the weather side get full frame treatment with new flashing. A contractor who proposes that mix openly is usually the one who looked at the wall rather than at the window count.

Almost every window quote in this city is really an answer to one question, and most homeowners never get told the question was asked. Does the new window go inside the frame that is already in the wall, or does the frame come out too.

That is the retrofit versus full frame decision. It changes the price by roughly double, it changes the job from one day to several, and it is decided by the condition of your openings rather than by which package a salesperson is pushing that month. Here is how we make the call, so you can make it yourself before anyone comes out.

Two Different Jobs Wearing the Same Name

A retrofit window, sometimes called an insert or a flush fin window, is a complete window unit with a flange around the outside that laps onto the face of your existing frame. The old sash and glass come out. The old frame stays put. The new unit is shimmed square inside it, sealed, and the flange covers the joint.

Nothing gets cut. Your stucco is untouched. The interior casing and drywall return never move. On a house where the existing openings are sound, that is not a compromise, it is simply the sensible way to do it.

A full frame replacement removes everything: sash, glass, frame, the nailing fin the frame was fastened with, and the stucco return that laps over that fin. What is left is bare rough framing. The opening gets repaired if it needs it, flashed from scratch, the new window set on its fin, and then lath, brown coat, colour coat and a texture match to bring the wall back.

One of those is a window job. The other is a window job with a small stucco job attached. Both are legitimate. The mistake is assuming the expensive one is the good one.

The Five Checks

Anyone can do these. You need a tape measure, a screwdriver and about three minutes per window.

Is the opening square

Measure the existing frame diagonally, corner to corner, both ways. If the two numbers are within a quarter of an inch of each other, the opening is square enough for a retrofit unit to sit properly in it.

If they are off by more, something has moved. On slab-on-grade tract houses out through Orangecrest and Mission Grove that usually means settlement has dropped one corner of the opening. You can still force a retrofit into a racked opening with enough shims, and plenty of people do, but the sash will bind and the weatherstrip will be under permanent uneven load. That opening wants full frame.

Is the sill solid

Press a screwdriver firmly into the wood sill at both bottom corners, which is where water sits longest. It should feel like pushing into a board. If it sinks, if it feels spongy, if the tip goes in a quarter of an inch with hand pressure, the framing has already taken water and gone soft.

A new window fastened to soft wood has nothing to hold. This one is not a judgement call.

What does the stucco return look like

The stucco return is the finished edge of stucco that wraps into the window opening. Look for cracks running out from the corners, sections that sound hollow when you tap them, and anywhere the stucco has pulled away from the frame leaving a gap that has been filled with caulk more than once.

A retrofit flange has to seal against a flat, sound surface. If the return has failed there is nothing to seal against, and no quantity of sealant fixes that for longer than a season or two.

Is there staining inside

Look at the interior casing directly under the sill, and at the drywall in the bottom corners. Water that has been getting past the flashing shows up as staining, bubbling or peeling paint, chalky white deposits, or drywall paper that has lifted.

This is the check people most want to talk themselves out of, because the stain is old and the leak is not currently happening. It does not matter. The flashing behind that fin has failed, and a retrofit window put in over the top of it seals the evidence away without touching the cause.

What is the frame made of and what shape is it in

Aluminium frames from the seventies and eighties are extremely common here and most of them are still structurally fine. Corroded corners where the sections meet, or a frame that flexes when you push on it, are different. So is a wood frame that has been painted so many times the sash has not opened since the Clinton administration.

What Each One Costs and Why

Per opening, retrofit work in Riverside typically lands somewhere between four hundred and nine hundred dollars depending on size, glass package and whether it operates. Full frame is roughly double that, call it nine hundred to eighteen hundred, and on a large or unusual opening it can be more.

The gap is not markup. Full frame is one to two extra hours of demolition per opening, framing repair where it is needed, a proper flashing sequence, and then a stucco trade coming back for lath, brown coat, colour coat and texture. Stucco has cure times that no amount of scheduling makes shorter.

Which is exactly why it is worth knowing which one you need. If your house takes retrofits and someone quotes you full frame across the board, you are paying for demolition and stucco repair you do not need. If your house genuinely needs full frame on two openings and you are quoted retrofit throughout, you are buying a cover up on those two, and it will surface in three to five years.

Most Houses Are Mixed

The single most useful thing to know is that this is not a whole house decision. It is a per opening decision.

The pattern we see constantly on a Riverside single family home is nine or ten openings that are clean retrofits and one or two that are not. The exceptions are almost always on the west and south elevations, because that is where the sun has been cooking the sealant and the paint for forty years, and where the wind driven rain we do get comes from.

So the quote should be itemised. Retrofit here, full frame at these two, and the reason written next to each. If a quote gives you one number for a whole house and does not name the method, that is the thing to ask about before anything else.

The Riverside Specifics That Change the Answer

Heat and the west elevation. Summer here is long, dry and genuinely hot, and afternoon sun on the west side of a house is the dominant load on your air conditioning. That is a glass specification question rather than a method question, but it interacts with the method: if you are doing full frame anyway, you have the opening open, and it is the moment to fix an undersized or badly placed window rather than replace it like for like.

Title 24 and the NFRC sticker. California sets the performance the new units have to hit for our climate zone. The two numbers on the sticker are U-factor, which is heat conduction, and SHGC, which is how much solar heat gets through the glass. Lower SHGC helps a lot on west and south glass in a climate like ours. You want the stickers left on until the inspector has seen them, and you want copies afterwards.

Vinyl in high heat. Vinyl is what most of these houses get and it is fine, but it expands and contracts more than fiberglass across the temperature swing between a hundred degree August afternoon and a cold January night. That makes the quality of the install matter more than the material choice. A vinyl unit screwed off hard against an out of square opening will bind by the second summer. Fiberglass moves less, costs more, and earns its money on large west facing sliders rather than on a north bedroom.

Santa Ana conditions. The wind events that come through in autumn are the ones that find every unsealed joint in a wall. They are also, usefully, the best free leak test you will ever get. If you feel air at a window during a Santa Ana, note which window and which corner and tell whoever measures.

Older stock. In the Wood Streets and along Victoria Avenue the housing is older, often with original wood windows, and the answer is sometimes neither method. A sound original double hung with good joinery is frequently better restored, reglazed and weatherstripped than replaced. That is not work we sell, and saying it costs us jobs, but a vinyl window in a nineteen twenties opening is a thing you cannot undo.

What Good Looks Like

A company that measures every opening before quoting any of them. A quote that names the method per opening and says why. Permits pulled, because Riverside requires one and the flashing inspection on full frame work is the inspection you actually want to happen. NFRC stickers left on. A labour warranty on water tightness in writing, separate from the manufacturer’s glass warranty, and long enough to matter.

And a straight answer when the honest answer is smaller than the sale. One fogged pane in an otherwise good vinyl window is a failed insulated glass unit, and swapping the glass is often the entire fix.

If you want the openings on your house looked at properly, call Artshay at (951) 839-3855. We will measure, check all five items above at every window, and tell you which method each opening needs before anything gets ordered.
